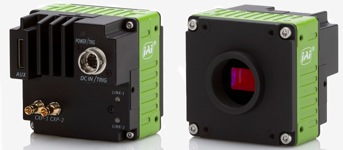

JAI SP-5000M-CXP2 | SP-5000C-CXP2
CoaXPress Camera
e2v Lince5M Sensor
2560x2048 Resolution
Area Scan Camera

get a quote for this product

JAI Spark Series Industrial Cameras Features

5 to 44.7 megapixels
Frame rates up to 253 fps
Vibration and shock resistance
GigE, Camera Link, USB3, or CoaxPress interface

SP-5000M-CXP2 | SP-5000C-CXP2 Camera Features

High speed

Multiple binning modes

Low cost

Ultra small

SP-5000M-CXP2 | SP-5000C-CXP2 Datasheet

SP-5000M-CXP2 | SP-5000C-CXP2 Manual

Sensor Spec
All JAI Cameras

Manufacturer:	JAI	Model:	SP-5000M-CXP2 SP-5000C-CXP2	Total Pixels:	5,242,880
Resolution:	2560 (h) 2048 (v)	Sensor Size:	1"	Color/B & W:	Color / Monochrome
Frame Rate (fps):	211	Sensor Type:	CMOS	Sensor Device:	e2v Lince5M
Pixel Size(µm):	5(h) 5(v)	A/D Bits:	12	Shutter Speed:	10µs to 8000000µs
Interface:	CoaXPress	Voltage(VDC):	12	Power(watts):	6.9
Lens Mount:	C	Shutter Type:	Global	Weight(grams):	215
S/N Ratio(dB):	call	External Trigger:	Yes	Dimensions(mm):	55.5Lx62Wx62H

Camera Resources

click to calculate FOV/FL for this camera

Lens Calculator
